0802 LCD I2C Adapter

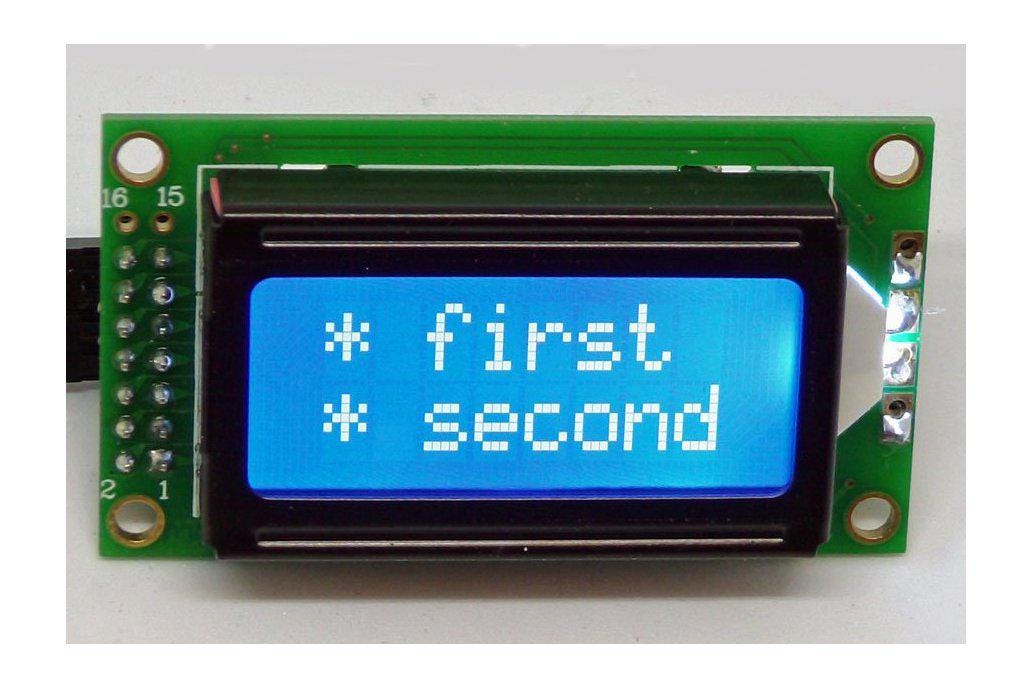

This is a circuit board which acts as an adapter between the common I2C backpacks and the 0802 format display, providing a compact and tidy result. It works with the 14-pin and 16-pin display types.

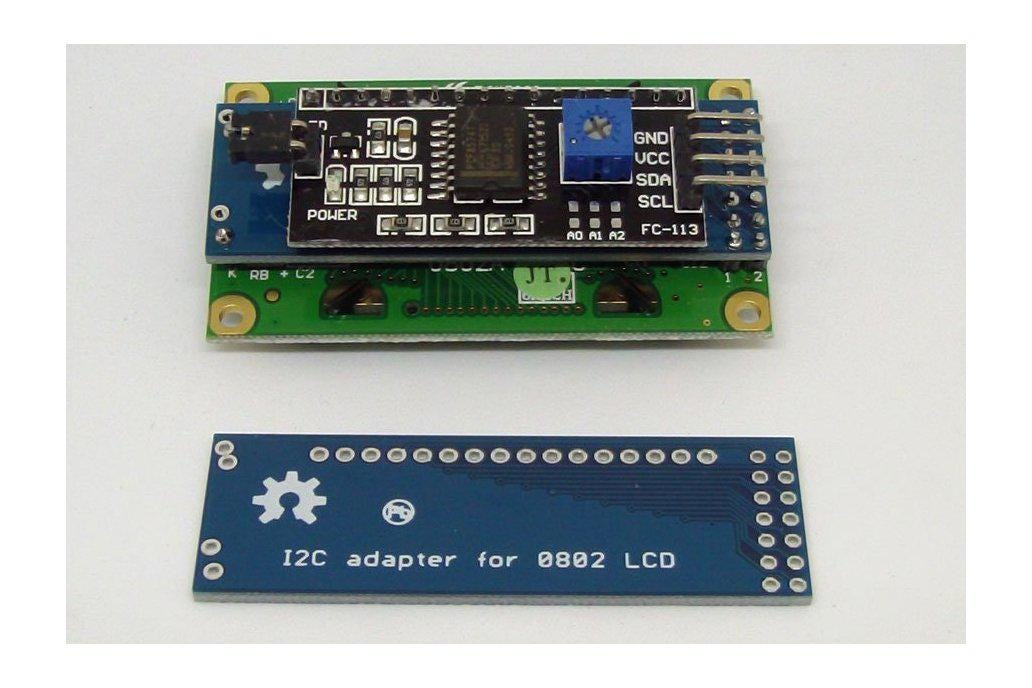

The I2C backpack is not included. Search "I2C Display adapter" and look for the ones in the second picture.

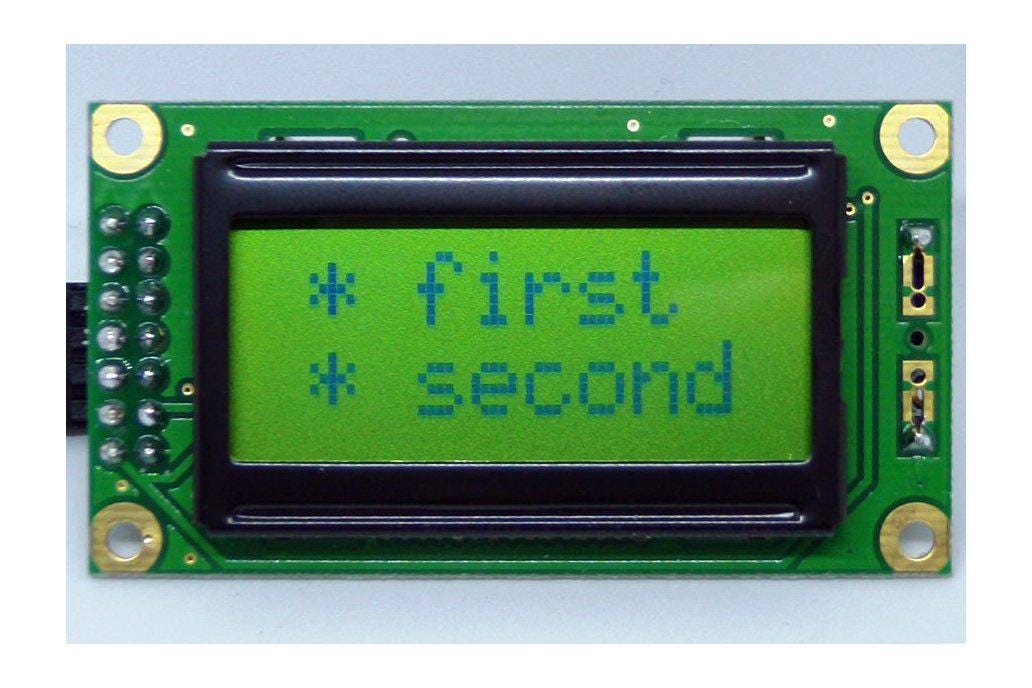

The green LCD options have no backlight

#### Instructions

- Place the display face down.
- Insert 2 x 7 header pins into positions 1-14, short end first. DO NOT SOLDER. On 16 pin displays, leave 15 & 16 open (they are the same as A and K).
- Insert 2 single header pins into position A and K, short end first. DO NOT SOLDER.
- Place the adapter board on the pins. Display pin 1 to board pin 1.
- There are two positions for A and K - move the single pins around for the best fit with your display - there appears to be no standard locations for these on the displays. The single pins have a bit of wiggle, so it's ok to lean them a bit if needed.
- Solder the headers to the adapter board. DO NOT SOLDER TO THE DISPLAY.
- Lift the adapter board off the display.
- Trim off the long ends of the header pins with wire cutters. Eye protection is advised - those things fly!
- These instructions assume that the I2C adapter has the 16 pin header already installed. If not - you need that done before the next step.
- Insert the I2C module into the adapter board - on the other side from where you had the display. The GND pin on the I2C module is closest to the 14-pin header. Look at the picture.
- Solder 1 pin on the I2C module, then straighten it up. Then solder the other 15 pins.
- Trim off the long ends of the header pins with wire cutters.
- Position the display back on its headers.
- Solder the 16 pins to the display.

Notes:

- Many of these I2C modules include a jumper to the backlight circuit. My preference is to solder a 330R resistor in that position as a current limiter, at least on 5V projects. probably not needed on 3.3V
- These modules also include the contrast pot and address jumpers. Default address is 0x27.
- I2C bus requires pullup resistors somewhere on the bus. 4.7K usually does the trick.
- I use this library for these displays.https://github.com/mathertel/LiquidCrystal_PCF8574
